IDS
IGNITION DEVELOPMENT DIMENSIONS

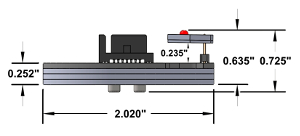

| CD#-LM
Series Dimensions |
||
Center hole diameter- 0.740" Height above adapter plate- .725" Depth below adapter plate- 0" Distance between mounting holes- 1.8" |
||
Bushing, Washer & Aluminum Standoff with Encoder Disk Examples |
||
Encoder disk diameter is 1.8". The aluminum standoff length can be adjusted for different applications.The brass bushing hole size can be changed to accommodate different screw/bolt sizes. |
||
Adapter Bushing with .250" ID Hole Download PDF  |
||
Adapter Bushing with .317" ID Hole Download PDF  |
||
